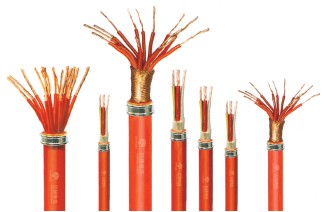

硅橡胶特种控制电缆
一、用途
适用于交流50-Hz 额定电压450/750V及以下电器仪表及自动的信号传输线以及各种移动电器连接线。
二、使用特性
工作温度：长期工作温度不超过180℃额定电压Uo/U:450/750V最低环境温度：固定敷设-60℃非固定敷设-20℃最小弯曲半径
：弯曲半径不小于电缆外径4倍
三、主要技术指标
|
项目 |
|
技术指标 |
|
导体直流电阻 |
0.5mm2 |
0.75mm2 |
1.0mm2 |
1.5mm2 |
2.5mm2 |
|
20℃Ω /KM |
分类 |
不镀锡 |
镀锡 |
不镀锡 |
镀锡 |
不镀锡 |
镀锡 |
不镀锡 |
镀锡 |
不镀锡 |
镀锡 |
|
B |
36.0 |
36.7 |
24.5 |
24.8 |
18.1 |
18.2 |
12.1 |
12.2 |
7.41 |
7.56 |
|
R |
39.0 |
40.1 |
26.0 |
26.7 |
19.5 |
20.0 |
13.3 |
13.7 |
7.98 |
8.21 |
|
试验电压（V/5min) |
3500 |
|
绝缘电阻（MΩ/KM） |
20℃大于 50 |
|
Z |
符合GB12666.5-90氧指数大于50高于B类要求 |
四、型号及名称
|
型号 |
名称 |
|
HTKGG |
铜芯硅橡胶绝缘及护套控制电缆 |
|
HTKGGP |
铜芯硅橡胶绝缘及护套铜丝编织屏蔽控制电缆 |
|
HTKGGx |
镀锡铜芯硅橡胶绝缘及护套控制电缆 |
|
HTKGGPx |
镀锡铜芯硅橡胶绝缘及护套铜丝编织屏蔽控制电缆 |
|
HTKFG |
铜芯氟塑料绝缘硅橡胶护套控制电缆 |

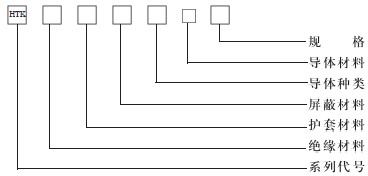

五、型号说明
|
项目 |
代号 |
说明 |
|
系列代号 |
HTK |
特控电缆 |
|
绝缘材料 |
G |
硅橡胶 |
|
F |
氟塑料 |
|
屏蔽材料 |
P |
铜丝编织 |
|
P1 |
镀锡铜丝编织 |
|
P3 |
铝塑带 |
|
护套材料 |
G |
硅橡胶 |
|
导体材料 |
/ |
铜丝省略 |
|
x |
镀锡钢丝 |
|
导体结构 |
B |
七股绞合导体 |
|
R |
多股软导体 |
|
规格 |
|
芯数*导体载面（N*S) |
|
|
N:2'3'4'5.......37 |
|
导体截面积 |
|
S:0.5,0.75,1.0,1.5,2.5,4 (mm2) |
例1.19芯载面为1.0mm2类导体镀锡线芯硅橡胶绝缘及护套特控电缆表示为：HTKGGB 19*1.0mm2
2.19芯载 面为1.0mm2R类导体硅橡胶绝缘及护套镀锡铜丝纺织屏蔽控电缆表示为：HTKGGP R 19*10mm2
3.19芯载面为1.0mm2镀锡线芯硅橡胶绝缘及护套特控电缆表示为： HTKGGx 19*1.0mm2
4.19芯载面为1.0mm2B类导体镀锡线芯氟塑料绝缘硅橡胶护套铝塑带屏蔽特控电缆表示为：HTKFGP3Bx 19*1.0mm2
电缆规格
|
芯数*标称截面（mm2） |
|
导体线芯 |
电缆最大外径 |
计算重量 |
|
种类 |
根数/直径mm |
HTKGG |
HTKGGP |
HTKGG |
HTKGGP |
|
|
|
HTKGGX |
HTKGGP1(P3) |
HTKGGX |
HTKGGP1(P3) |
|
2*0.5 |
B |
7/0.30
|
7.4 |
7.7 |
48.0 |
67.0 |
|
R |
16/0.20 |
|
2*0.75 |
B |
7/0.37
|
7.8 |
8.1 |
55.0 |
77.0 |
|
R |
24/0.20 |
|
2*1.0 |
B |
7/0.43
|
8.0 |
8.3 |
59.0 |
81.0 |
|
R |
32/0.20 |
|
2*1.5 |
B |
7/0.52
|
9.4 |
9.7 |
92.0 |
120.0 |
|
R |
30/0.25 |
|
2*2.5 |
B |
19/0.41
|
10.6 |
10.9 |
134.0 |
167.0 |
|
R |
49/0.25 |
|
3*0.5 |
B |
7/0.30
|
7.7 |
8.1 |
58.0 |
83.0 |
|
R |
16/0.20 |
|
3*0.75 |
B |
7/0.37
|
8.2 |
8.6 |
68.0 |
98.0 |
|
R |
24/0.20 |
|
3*1.0 |
B |
7/0.43
|
8.4 |
8.8 |
81.0 |
121.0 |
|
R |
32/0.20 |
|
3*1.5 |
B |
7/0.52
|
9.9 |
10.3 |
117.0 |
167.0 |
|
R |
30/0.25 |
|
3*2.5 |
B |
19/0.41
|
11.2 |
11.6 |
155.0 |
202.0 |
|
R |
49/0.25 |
|
4*0.5 |
B |
7/0.30
|
9.3 |
9.7 |
85.0 |
116.0 |
|
R |
16/0.20 |
|
4*0.75 |
B |
7/0.37
|
9.8 |
10.2 |
101.0 |
135.0 |
|
R |
24/0.20 |
|
4*1.0 |
B |
7/0.43
|
10.0 |
10.4 |
124.0 |
159.0 |
|
R |
32/0.20 |
|
4*1.5 |
B |
7/0.52
|
11.7 |
12.1 |
163.0 |
210.0 |
|
R |
30/0.25 |
|
4*2.5 |
B |
19/0.41
|
13.2 |
13.6 |
216.0 |
268.0 |
|
R |
49/0.25 |
|
5*0.5 |
B |
7/0.30
|
9.9 |
10.3 |
99.0 |
151.0 |
|
R |
16/0.20 |
|
5*0.75 |
B |
7/0.37
|
10.5 |
10.9 |
1170 |
155.0 |
|
R |
24/0.20 |
|
5*1.0 |
B |
7/0.43
|
10.8 |
11.2 |
135.0 |
174.0 |
|
R |
32/0.20 |
|
5*1.5 |
B |
7/0.52
|
12.6 |
13.0 |
192.0 |
242.0 |
|
R |
30/0.25 |
|
芯数*标称截面（mm2） |
|
导体线芯 |
电缆最大外径 |
计算重量 |
|
种类 |
根数/直径mm |
HTKGG |
HTKGGP |
HTKGG |
HTKGGP |
|
|
|
HTKGGX |
HTKGGP1(P3) |
HTKGGX |
HTKGGP1(P3) |
|
5*2.5 |
B |
19/0.41 |
14.3 |
14.7 |
258.0 |
317.0 |
|
R |
49/0.25 |
|
6*0.5 |
B |
7/0.30 |
10.2 |
10.6 |
111.0 |
147.0 |
|
R |
16/0.20 |
|
6*0.75 |
B |
7/0.37 |
10.7 |
11.1 |
129.0 |
168.0 |
|
R |
24/0.20 |
|
6*1.0 |
B |
7/0.43 |
11.0 |
11.4 |
150.0 |
190.0 |
|
R |
32/0.20 |
|
6*1.5 |
B |
7/0.52 |
13.0 |
13.4 |
220.0 |
277.0 |
|
R |
30/0.25 |
|
6*2.5 |
B |
19/0.41 |
14.6 |
14.9 |
291.0 |
346.0 |
|
R |
49/0.25 |
|
7*0.5 |
B |
7/0.30 |
10.6 |
11.0 |
122.0 |
160.0 |
|
R |
16/0.20 |
|
7*0.75 |
B |
7/0.37 |
11.2 |
11.6 |
144.0 |
186.0 |
|
R |
24/0.20 |
|
7*1.0 |
B |
7/0.43 |
11.5 |
11.9 |
168.0 |
211.0 |
|
R |
32/0.20 |
|
7*1.5 |
B |
7/0.52 |
13.6 |
14.0 |
246.0 |
301.0 |
|
R |
30/0.25 |
|
7*2.5 |
B |
19/0.41 |
15.4 |
15.8 |
351.0 |
416.0 |
|
R |
49/0.25 |
|
8*0.5 |
B |
7/0.30 |
11.3 |
11.7 |
137.0 |
179.0 |
|
R |
16/0.20 |
|
8*0.75 |
B |
7/0.37 |
11.9 |
12.3 |
160.0 |
205.0 |
|
R |
24/0.20 |
|
8*1.0 |
B |
7/0.43 |
12.3 |
12.7 |
189.0 |
237.0 |
|
R |
30/0.20 |
|
8*1.5 |
B |
7/0.52 |
14.6 |
15.0 |
279.0 |
339.0 |
|
R |
30/0.25 |
|
8*2.5 |
B |
19/0.41 |
16.5 |
16.9 |
371.0 |
443.0 |
|
R |
49/0.25 |
|
9*0.5 |
B |
7/0.30 |
12.1 |
12.5 |
150.0 |
197.0 |
|
R |
16/0.20 |
|
9*0.75 |
B |
7/0.37 |
12.9 |
13.3 |
180.0 |
231.0 |
|
R |
24/0.20 |
|
9*1.0 |
B |
7/0.43 |
13.3 |
13.7 |
211.0 |
264.0 |
|
R |
30/0.20 |
|
芯数*标称截面（mm2） |
种类 |
导体线芯 |
电缆最大外径 |
计算重量 |
|
根数/直径mm |
HTKGG |
HTKGGP |
HTKGG |
HTKGGP |
|
|
HTKGGX |
HTKGGP1(P3) |
HTKGGX |
HTKGGP1(P3) |
|
9*1.5 |
B |
7/0.52 |
15.8 |
16.2 |
308.0 |
376.0 |
|
R |
30/0.25 |
|
9*2.5 |
B |
19/0.41 |
18.0 |
18.4 |
414.0 |
494.0 |
|
R |
49/0.25 |
|
10*0.5 |
B |
7/0.30 |
12.8 |
13.2 |
165.0 |
216.0 |
|
R |
16/0.20 |
|
10*0.75 |
B |
7/0.37 |
13.6 |
14.0 |
198.0 |
253.0 |
|
R |
24/0.20 |
|
10*1.0 |
B |
7/0.43 |
14.0 |
14.3 |
239.0 |
297.0 |
|
R |
32/0.20 |
|
10*1.5 |
B |
7/0.52 |
16.8 |
17.2 |
340.0 |
413.0 |
|
R |
30/0.25 |
|
10*2.5 |
B |
19/0.41 |
19.2 |
19.6 |
459.0 |
650.0 |
|
R |
49/0.25 |
|
11*0.5 |
B |
7/0.30 |
13.1 |
13.5 |
174.0 |
226.0 |
|
R |
16/0.20 |
|
11*0.75 |
B |
7/0.37 |
14.0 |
14.4 |
210.0 |
267.0 |
|
R |
24/0.20 |
|
11*1.0 |
B |
7/0.43 |
14.4 |
14.8 |
246.0 |
306.0 |
|
R |
32/0.20 |
|
11*1.5 |
B |
7/0.52 |
17.3 |
17.7 |
368.0 |
444.0 |
|
R |
30/0.25 |
|
11*2.5 |
B |
19/0.41 |
19.8 |
20.2 |
498.0 |
587.0 |
|
R |
49/0.25 |
|
12*0.5 |
B |
7/0.30 |
13.1 |
13.5 |
183.0 |
235.0 |
|
R |
16/0.20 |
|
12*0.75 |
B |
7/0.37 |
14.0 |
14.4 |
221.0 |
278.0 |
|
R |
24/0.20 |
|
12*1.0 |
B |
7/0.43 |
14.4 |
14.8 |
260.0 |
320.0 |
|
R |
32/0.20 |
|
12*1.5 |
B |
7/0.52 |
17.3 |
17.7 |
391.0 |
467.0 |
|
R |
30/0.25 |
|
12*2.5 |
B |
19/0.41 |
19.8 |
20.2 |
531.0 |
620.0 |
|
R |
49/0.25 |
|
13*0.5 |
B |
7/0.30 |
13.7 |
14.1 |
179.0 |
234.0 |
|
R |
16/0.20 |
|
13*0.75 |
B |
7/0.37 |
14.6 |
15.0 |
237.0 |
298.0 |
|
R |
24/0.20 |
|
芯数*标称截面（mm2） |
种类 |
导体线芯 |
电缆最大外径 |
计算重量 |
|
根数/直径mm |
HTKGG |
HTKGGP |
HTKGG |
HTKGGP |
|
|
HTKGGX |
HTKGGP1(P3) |
HTKGGX |
HTKGGP1(P3) |
|
13*1.0 |
B |
7/0.43 |
15.0 |
15.4 |
277.0 |
340.0 |
|
R |
32/0.20 |
|
13*1.5 |
B |
7/0.52 |
18.1 |
18.5 |
419.0 |
500.0 |
|
R |
30/0.25 |
|
13*2.5 |
B |
19/0.41 |
20.8 |
21.2 |
572.0 |
667.0 |
|
R |
49/0.25 |
|
14*0.5 |
B |
7/0.30 |
13.7 |
14.1 |
187.0 |
243.0 |
|
R |
16/0.20 |
|
14*0.75 |
B |
7/0.37 |
14.6 |
15.0 |
278.0 |
309.0 |
|
R |
24/0.20 |
|
14*1.0 |
B |
7/0.43 |
15.0 |
15.4 |
291.0 |
354.0 |
|
R |
32/0.20 |
|
14*1.5 |
B |
7/0.52 |
18.1 |
18.5 |
442.0 |
523.0 |
|
R |
30/0.25 |
|
14*2.5 |
B |
19/0.41 |
20.8 |
21.2 |
605.0 |
700.0 |
|
R |
49/0.25 |
|
15*0.5 |
B |
7/0.30 |
14.3 |
14.7 |
200.0 |
260.0 |
|
R |
16/0.20 |
|
15*0.75 |
B |
7/0.37 |
15.3 |
15.7 |
264.0 |
328.0 |
|
R |
24/0.20 |
|
15*1.0 |
B |
7/0.43 |
15.8 |
16.2 |
314.0 |
381.0 |
|
R |
32/0.20 |
|
15*1.5 |
B |
7/0.52 |
19.0 |
19.4 |
470.0 |
556.0 |
|
R |
30/0.25 |
|
15*2.5 |
B |
19/0.41 |
21.9 |
22.3 |
642.0 |
744.0 |
|
R |
49/0.25 |
|
16*0.5 |
B |
7/0.30 |
14.3 |
14.7 |
209.0 |
269.0 |
|
R |
16/0.20 |
|
16*0.75 |
B |
7/0.37 |
15.3 |
15.7 |
275.0 |
339.0 |
|
R |
24/0.20 |
|
16*1.0 |
B |
7/0.43 |
15.8 |
16.2 |
325.0 |
392.0 |
|
R |
32/0.20 |
|
16*1.5 |
B |
7/0.52 |
19.0 |
19.4 |
493.0 |
579.0 |
|
R |
30/0.25 |
|
16*2.5 |
B |
19/0.41 |
21.9 |
22.3 |
675.0 |
777.0 |
|
R |
49/0.25 |
|
17*0.5 |
B |
7/0.30 |
12.8 |
13.2 |
241.0 |
304.0 |
|
R |
16/0.20 |
|
芯数*标称截面（mm2） |
种类 |
导体线芯 |
电缆最大外径 |
计算重量 |
|
根数/直径mm |
HTKGG |
HTKGGP |
HTKGG |
HTKGGP |
|
|
HTKGGX |
HTKGGP1(P3) |
HTKGGX |
HTKGGP1(P3) |
|
17*0.75 |
B |
7/0.37 |
13.6 |
14.0 |
291.0 |
370.0 |
|
R |
24/0.20 |
|
17*1.0 |
B |
7/0.43 |
14.0 |
14.4 |
327.0 |
364.0 |
|
R |
32/0.20 |
|
17*1.5 |
B |
7/0.52 |
20.0 |
20.4 |
561.0 |
652.0 |
|
R |
30/0.25 |
|
17*2.5 |
B |
19/0.41 |
23.0 |
23.4 |
719.0 |
727.0 |
|
R |
49/0.25 |
|
18*0.5 |
B |
7/0.30 |
12.8 |
13.2 |
250.0 |
313.0 |
|
R |
16/0.20 |
|
18*0.75 |
B |
7/0.37 |
13.6 |
14.0 |
302.0 |
381.0 |
|
R |
24/0.20 |
|
18*1.0 |
B |
7/0.43 |
14.0 |
14.4 |
341.0 |
378.0 |
|
R |
32/0.20 |
|
18*1.5 |
B |
7/0.52 |
20.0 |
20.4 |
584.0 |
675.0 |
|
R |
30/0.25 |
|
18*2.5 |
B |
19/0.41 |
23.0 |
23.4 |
752.0 |
760.0 |
|
R |
49/0.25 |
|
19*0.5 |
B |
7/0.30 |
12.8 |
13.2 |
259.0 |
322.0 |
|
R |
16/0.20 |
|
19*0.75 |
B |
7/0.37 |
13.6 |
14.0 |
313.0 |
392.0 |
|
R |
24/0.20 |
|
19*1.0 |
B |
7/0.43 |
14.0 |
14.4 |
355.0 |
392.0 |
|
R |
32/0.20 |
|
19*1.5 |
B |
7/0.52 |
20.0 |
20.4 |
607.0 |
698.0 |
|
R |
30/0.25 |
|
19*2.5 |
B |
19/0.41 |
23.0 |
23.4 |
785.0 |
793.0 |
|
R |
49/0.25 |
|
24*0.5 |
B |
7/0.30 |
18.2 |
18.6 |
368.0 |
443.0 |
|
R |
16/0.20 |
|
24*0.75 |
B |
7/0.37 |
19.4 |
19.8 |
432.0 |
514.0 |
|
R |
24/0.20 |
|
24*1.0 |
B |
7/0.43 |
20.0 |
20.4 |
511.0 |
596.0 |
|
R |
32/0.20 |
|
24*1.5 |
B |
7/0.52 |
24.2 |
24.6 |
770.0 |
879.0 |
|
R |
30/0.25 |
|
芯数*标称截面（mm2） |
种类 |
导体线芯 |
电缆最大外径 |
计算重量 |
|
根数/直径mm |
HTKGG |
HTKGGP |
HTKGG |
HTKGGP |
|
|
HTKGGX |
HTKGGP1(P3) |
HTKGGX |
HTKGGP1(P3) |
|
24 2.5 |
B |
19/0.41 |
27.8 |
28.2 |
1048 |
1178.0 |
|
R |
49/0.25 |
|
27 0.5 |
B |
7/0.30 |
18.5 |
18.9 |
388.0 |
467.0 |
|
R |
16/0.20 |
|
27 0.75 |
B |
7/0.37 |
19.8 |
20.2 |
532.0 |
616.0 |
|
R |
24/0.20 |
|
27 1.0 |
B |
7/0.43 |
20.4 |
20.8 |
558.0 |
645.0 |
|
R |
32/0.20 |
|
27 1.5 |
B |
7/0.52 |
24.7 |
25.1 |
845.0 |
957.0 |
|
R |
30/0.25 |
|
27 2.5 |
B |
19/0.41 |
28.4 |
28.8 |
1154.0 |
1292.0 |
|
R |
49/0.25 |
|
30 0.5 |
B |
7/0.30 |
19.1 |
19.5 |
421.0 |
499.0 |
|
R |
16/0.20 |
|
30 0.75 |
B |
7/0.37 |
20.4 |
20.8 |
509.0 |
598.0 |
|
R |
24/0.20 |
|
30 1.0 |
B |
7/0.43 |
21.0 |
21.4 |
604.0 |
687.0 |
|
R |
32/0.20 |
|
30 1.5 |
B |
7/0.52 |
25.5 |
25.9 |
922.0 |
1037.0 |
|
R |
30/0.25 |
|
30 2.5 |
B |
19/0.41 |
29.4 |
29.8 |
1261.0 |
1404.0 |
|
R |
49/0.25 |
|
37 0.5 |
B |
7/0.30 |
20.7 |
21.1 |
496.0 |
583.0 |
|
R |
16/0.20 |
|
37 0.75 |
B |
7/0.37 |
22.1 |
22.5 |
602.0 |
690.0 |
|
R |
24/0.20 |
|
37 0.75 |
B |
7/0.43 |
22.8 |
23.2 |
722.0 |
810.0 |
|
R |
32/0.20 |
|
37 1.5 |
B |
7/0.52 |
27.8 |
28.2 |
1104.0 |
1234.0 |
|
R |
30/0.25 |
|
37 2.5 |
B |
19/0.41 |
32.1 |
32.5 |
1519.0 |
1672.0 |
|
R |
49/0.25 |
注：HTKFGPxHTKFGB型外直径同上
交货长度：按客户要求
